Geometry analysis: Technic angular beam 4x6 (42149)

When creating novel designs with LEGO, it is helpful to understand the precise geometry so that we don’t use parts incorrectly and damage them. The Technic Angular Beam 4x6 (ID: 42149) is also known on Bricklink as the Technic, Liftarm, Modified Bent Thick 1 x 9 (6 - 4) (Item 6629). First introduced in 1996, this is a fairly common element in Technic builds and is currently available in 10 colors.

Knowing that LEGO elements are typically designed around the standard stud spacing, I find it helpful to understand how this part relates to the ‘grid’ so that we can calculate the precise angle used here.

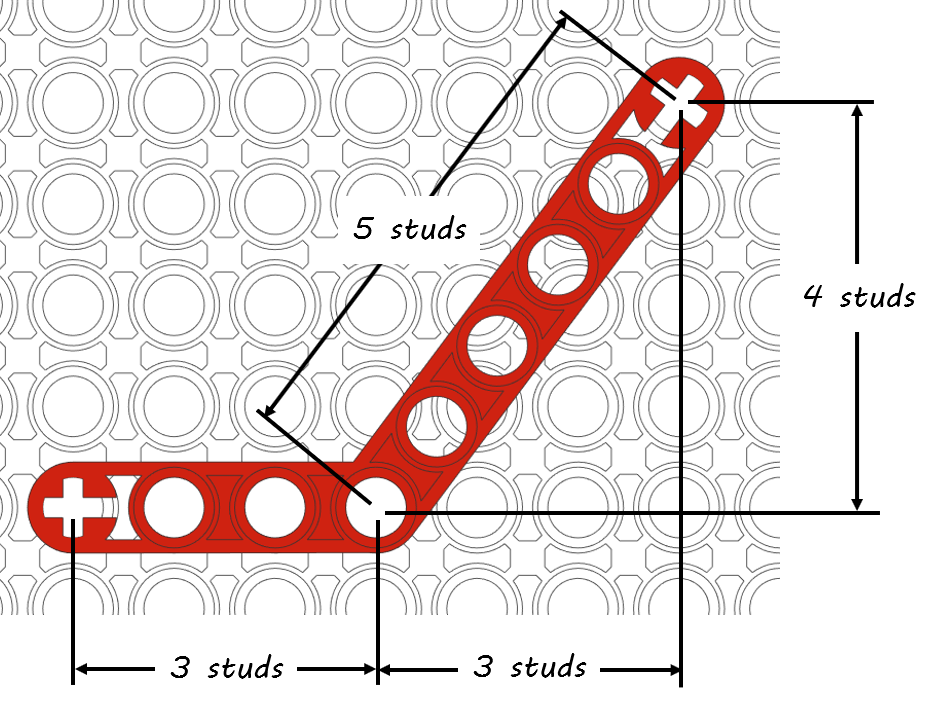

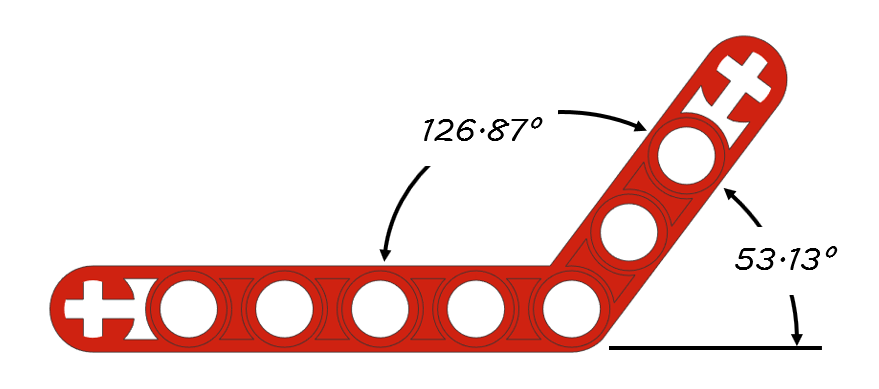

As you can see in the image, after orienting the short leg of this part to the grid, the long leg will form a 3:4:5 right triangle. We can use trigonometry to calculate the angle of the part as 126.87° between the legs, or 53.13° when describing the bend angle.

Why do I need to know this angle so precisely? First, as I stated earlier, it is helpful to understand how this part was designed to interact with the standard grid. Second, when assembling complex models in Bricklink Studio it is often necessary to manually rotate parts to very precise angles so that they align with one another properly.
